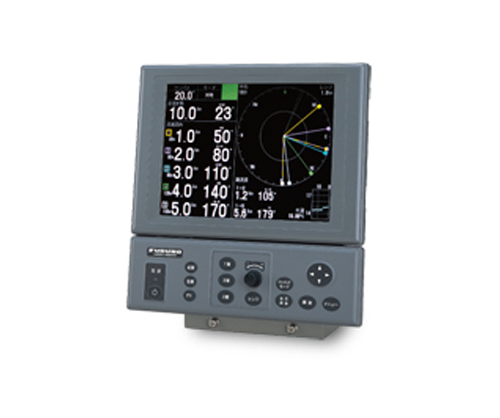

- CURRENT INDICATOR Model CI-68
STME Products
Obtain highly accurate water current measurements using FURUNO's reliable acoustic technology.
The CI-68 displays tide speed and direction at three depth layers and ship's speed on a high definition 10.4color LCD.
Features
-
Compact 3-unit design for ease of installation and maintenance
-
High definition 10.4" color LCD
-
Black box system configuration allows for use of optional CRT or LCD monitors
-
Continuous display of tide speed and direction at five different depth layers
-
Triple-beam system for less error in tide current detection
-
True tide current presentation with external GPS navigator and Satellite compass
Specifications
GENERAL
| Display unit | 10.4" TFT color LCD, 640 x 480 pixels |
|---|---|
| Tide Speed | 0.0～9.9 kt |
| Measurements Accuracy | ± 2% of ship's speed + 0.2 kt |
| Number of layers | 5 layers |
| Depth Range | 2 to 75% of water depth up to 150 m (Over 22 m of water depth is required in Ground tracking mode. Over 40 m water depth is required in Water Tracking mode) |
| Frequency | 244 kHz |
| Waterproofing | Transceiver/Monitor unit: IPX0 Control unit: IPX2 (panel), IPX0 (chassis) Junction box: IPX4 Transducer: IPX8 |
| Power Supply | 115/230 VAC |
| Size | 327 (H) x 290 (W) x 171 (D) |
| Weight | Display/Control Unit (MU-100C・CI-6888：6.0 kg) Transceiver Unit (CI-6810：19.0 kg) Transducer (CI-620-1-68：21 kg) |
