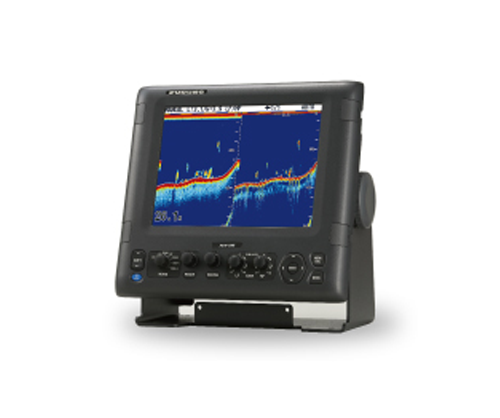

- 10.4" COLOR LCD SOUNDER Model FCV-295
STME Products
New digital fish finder delivers crystal clear image of fish targets and bottom structure
The FCV-295 is a color digital sounder designed for a variety of professional fishing operations. It features a bonded 10.4 LCD display providing superior viewing even in direct sunlight. You can display echoes in 8, 16, or 64 colors, with color assignment dependent on the strength of the returned echo.
Features
- 10.4"bonded color LCD provides clear view in any weather conditions
- Post-processing gain control applies to all existing returns on the display
- White Edge function trace the bottom contour with a thin white line
- FURUNO Digital Filter delivers crystal clear target presentation
- FURUNO Free Synthesizer transceiver allows adjustable operating frequency
Specifications
DISPLAY
| Display unit | 10.4" TFT color LCD |
|---|---|
| Pixel number | 640 x 480 |
FISH FINDER
| Frequency | The synthesized transreceiver works with dual frequencies in 28 to 200 kHz |
|---|---|
| Transducer | 1, 2 or 3 kW |
| Range Scale | 5-3000 m |
| Pulselength & PRR | 20-3000 pulse/min |
| Display Mode | Single (HF/LF), Dual, Single+Zoom, two Custom modes, Zoom mode (Bottom lock, Bottom zoom, Marker zoom), Mix mode, Nav data, A-scope |
OTHERS
| Waterproofing | IP55 (When flush mounted) |
|---|---|
| Power Supply | 12-24 VDC: 2.6-1.3 A 100/110/220/230 VAC, optional rectifier required |
| Size | 270 (H) x 233 (W) x 158 (D) |
| Weight | 7.0 kg |
