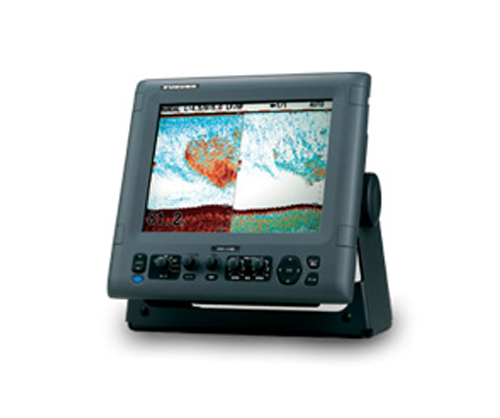

- 12.1" COLOR LCD SOUNDER Model FCV-1150
STME Products
High performance 12.1 LCD digital fish finder delivers super clear view of fish targets!
The FCV-1150 is a color digital sounder designed for a variety of professional fishing operations. It’s high-brightness color LCD with AR coated glass filter provides superior, glare-free viewing even in direct sunlight.
Features
-
High-brightness (1,000CD) 12.1 LCD with AR coated glass filter and anti-polarized sunglass filter
-
Post-processing gain control applies changes to gain setting to all existing returns on the display
-
White Edge bottom discrimination
-
Available Heaving Compensation provides stable echo presentation even in rough seas
-
FURUNO Digital Filter delivers crystal clear target presentation
-
Furuno Free Synthesizer (FFS) allows for adjustable operating frequency
Specifications
DISPLAY
| Display unit | 12.1" TFT color LCD |
|---|---|
| Pixel number | 800 × 600 |
FISH FINDER
| Frequency | The synthesized transreceiver works with dual frequencies in 28 to 200 kHz |
|---|---|
| Transducer | 1, 2 or 3 kW |
| Range Scale | 5-3000 m |
| Pulselength & PRR | 20-3000 pulse/min |
| Display Mode | Single (HF/LF), Dual, Single+Zoom, two Custom modes, Zoom mode (Bottom lock, Bottom zoom, Marker zoom), Mix mode, Nav data, A-scope |
OTHERS
| Waterproofing | IP55 (When flush mounted) |
|---|---|
| Power Supply | 12-24 VDC: 3.3-1.7 A 100/110/220/230 VAC, optional rectifier required |
| Size | 345 (H) x 356 (W) x 199 (D) |
| Weight | Bracket Mount: 8.2 kg Flush Mount: 6.8 kg |
