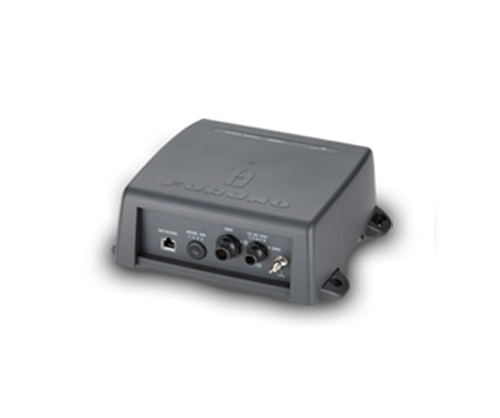

With this new BBDS1, NavNet 3D/TZtouch/TZtouch2 can show bottom discrimination information from the depth sounder echogram.

 Features

Indicates a major component of the bottom among mud, sand, gravel, and rock.
Works with NavNet series
Dual-frequency 50/200 kHz
FDF (Furuno Digital Filter) makes the picture clearer and easier to discriminate between baitfish and larger target species
FDF technology helps adjust gain and output power as well as suppresses main bang (echoes just below transducer)
8/16/64 color echo presentations
8 range scales up to 1200 m
Selectable output power of 600W or 1kW
Audio and visual alarms for water depth, fish echoes and water temperature* *Requires appropriate sensors
Wide variety of transducer options
Selectable automatic cruising or fishing modes to suit your style of boating
Automatic function for detecting fish and bottom in both shallow and deep water
White line feature helps discriminate fish lying near the bottom

Specifications

FISH FINDER

OTHERS
