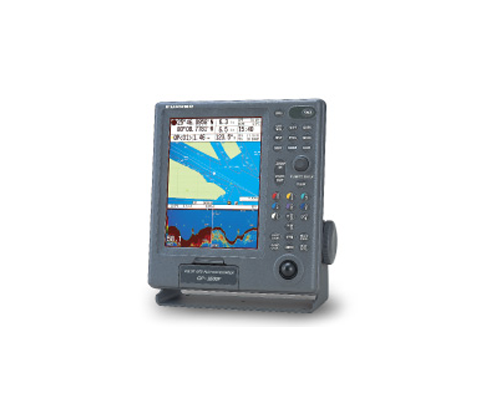

10.4" GPS/DGPS/WAAS CHART PLOTTER & FISH FINDER COMBO Model GP-3500F
In Stock
User friendly key arrangement and menu structure give straightforward operation for a wide variety of vessels
The GP-3500 series is FURUNO's high performance GPS/DGPS/WAAS Chart Plotter designed for a wide variety of fishing vessels and pleasure craft. The compact, 12-channel antenna unit offers extremely accurate position fixes - 10 m for the basic GPS, 5 m for the DGPS and 3 m where SBAS (WAAS/EGNOS/MSAS) is available.
Features
-
Accuracy enhanced with built-in SBAS (WAAS/EGNOS/MSAS)
-
10.4" high-definition TFT LCD for ptimum viewing during daytime and nighttime
-
Display of ship's tracks, waypoints and planned route on a precision electronic chart
-
Dual interchangeable Card Slot Works With C-MAPNT Charts or NAVIONICS Nav-Charts/FURUNO MiniCharts
-
Display modes including: Course Plot, Nav Data, Compass
-
Low-profile, space-saving display unit with GPS/SBAS combo antenna
-
Stores up to 80,000 ship's tracks and marks, 3,500 waypoints, 200 planned routes
-
50/200 kHz dual-frequency echo sounder, selection of 600 W or 1 kW
-
Optional MiniMemory Card for storage of ship's tracks and marks
-
Remote Controller available as option
Specifications
Display Unit
| Screen Type | 10.4" TFT Color LCD |
|---|---|
| Screen Resolution | 480 x 640 pixels |
| GPS Antenna | External |
| Display Modes | Course plot, Nav Data, Compass Display, Fish Finder |
GPS / SBAS (WAAS/EGNOS/MSAS)
| Receiving Type | Twelve discrete channels, C/A code, all-in-view, Integral SBAS receiver processor |
|---|---|
| Receiving Frequency | L1 (1575.42MHｚ) |
| Accuracy | GPS: 10 m, DGPS: 5 m, WAAS: 3 m |
PLOTTER
| Chart | FURUNO MiniChart, NAVIONICS® Nav-Chart™ or C-MAPNT Chart note: Choose from two units that accept either C-MAPNT Charts or Navionics® Nav-Chart™/Furuno MiniCharts when ordering. |
|---|---|
| Memory Capacity | Up to 80,000 points for ship's track points and marks. 3500 waypoints and 200 planned routes (Max. 35 waypoints/route) |
| Display Range | 0.125 to 1024 nm |
FISH FINDER
| Transmit Frequency | 50/200 kHz |
|---|---|
| Transmission | 600 W/1 kW (specify when ordering) |
| Display Range | Basic ranges: 8 basic ranges customized to max 1200 m Range shift：0 to1200 m |
OTHERS
| Waterproofing | Display unit: IPX2 (IEC 60529), Antenna unit: IPX6 |
|---|---|
| Power Supply | 12-24 VDC, 30 W |
| Size | 337（H) x 310 (W) x 134 (D) |
| Weight | 4.7 kg |
