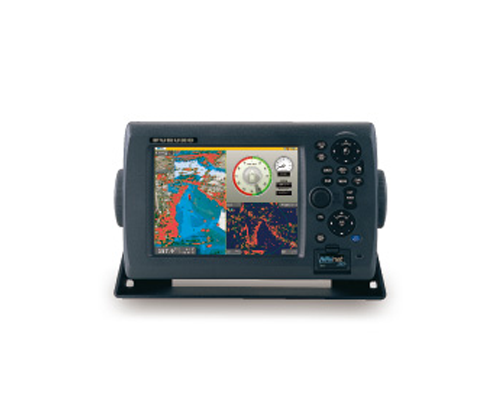

- 8.4" COLOR LCD MULTI FUNCTION DISPLAY Model MFD8
STME Products
Adding a New Dimension to 3D
NavNet 3D is a groundbreaking navigation system that introduces new concepts for a user interface that makes navigating your vessel easier than ever before.
Features
-
NavNet 3D redefines the user interface of onboard navigation systems
-
New cutting-edge technology "TimeZero"
-
True 3D environment for a more instinctive chart presentation
-
High-resolution satellite photography can be fused with raster or vector chart information
-
New Ultra High Definition (UHD) Digital Radar
-
FURUNO Digital Filter (FDF) Fish Finder
-
Puts a whole new spin on user friendly
Specifications
DISPLAY
| Display Unit | 8.4" Color TFT LCD |
|---|---|
| Screen Brightness | 700 cd/㎡ (typical） |
| Screen Resolution | VGA 640 x 480 pixels |
| Language | English (US & UK), French, Spanish, German, Italian, Portuguese, Swedish, Danish, Norwegian, Finnish, Dutch, Chinese (simplified Chinese characters), Japanese |
PLOTTER
| Position Accuracy | GPS: 10 m, MSAS: 7 m, WAAS: 3 m |
|---|---|
| Chart | MapMedia mm3d chart (Jeppesen/Navionics/NOAA) |
| Memory Capacity | Up to 10,000 points for ship's tracks, 2000 user points, 200 planned routes (100 points per route) |
RADAR
| Display Mode | Head-up, Course-up*, North-up*, Relative Motion, True Motion**
*Heading input required |
|---|---|
| Echo Trail | Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins and continuous |
| Target Tracking | 30 targets |
OTHERS
| AIS | Up to 100 targets |
|---|
INTERFACE
| CAN bus | 1 Port |
|---|---|
| NMEA0183 | 3 Ports for Input/Output |
| LAN | 1 Port, 100 BASE-TX |
| USB Port | 1 Port (USB 1.1) |
| Video Output | 1 Port (DVI-D VGA) |
| Video Input | 2 Ports (NTSC/PAL) |
| SD Card Slot | 2 Slots |
| Waterproofing | IP56 (IEC60529) |
| Power Supply | 12-24 VDC, 29 W 73 W (with DRS2D) 77 W (with DRS4D) 104 W (with DRS4A) 131 W (with DRS6A) 143 W (with DRS12A) 174 W (with DRS25A) 100/110/220/230 VAC with optional rectifier RU-1746B-2/PR-62/RU-3423 |
| Size | Table-top mount: 217 (H) x 335 (W) x 136 (D) Flush mount: 190 (H) x 308 (W) x 129 (D) |
| Weight | Table-top mount: 4.7 kg Flush mount: 3.9 kg |
