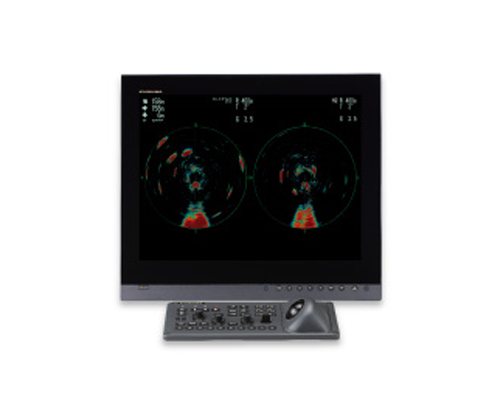

FULL-CIRCLE COLOR SCANNING SONAR Model FSV-85
Product not in stock!
Advanced Solutions Built on World-Proven Sonar Technology
The FSV series of Furuno Scanning Sonar has long been a favorite among commercial fishermen, and the FSV-85 carries on that tradition. The FSV series provides reliable and consistent detection of fish and seabed conditions with revolutionary, enhanced signal processing technology.
Features
-
Cylindrical + sphere transducer provides 90 degrees vertical detection
-
Schools of fish can be searched from horizontal (range direction), vertical (depth direction) with vertical and half-circle features
-
Function keys for direct access to desired menu item
-
Dual Display mode
-
User programs for one-touch setup of equipment
-
Menu-driven operation
-
Fish histogram shows signal strength distribution of echo within estimate mark
-
Fish mark estimates fish speed
-
Fish estimate feature to compare the volume of two schools of fish
-
Pitching and rolling compensation for stable picture always
Specifications
GENERAL
| Basic Range | 60-2000 m |
|---|
Power Supply
| Processor Unit | Processor unit: 12-24 VDC: 10-5 A Interface unit: 48 VDC: 1 A or less (from Processor unit) |
|---|---|
| Transceiver Unit | 100/110/115/220/230 VAC: 15 A, 1 phase, 50/60Hz |
| Hull Unit | Hull unit: 200-220 VAC: 4 A, 3 phase, 50/60Hz |
| Waterproofing | Control unit: IP22 (panel), IP20 (chassis) Processor unit: IP20 Interface unit: IP20 Transceiver unit, others: IPX0 Transducer: IPX8 |
|---|
OTHERS
| Weight | Control unit: 3.8 kg Processor unit: 15 kg Interface unit: 3.4 kg Transceiver unit: 95 kg Hull unit: 370 kg (800 mm), 930 kg (1100 mm) *with tank |
|---|
