• Full compliance with IMO MSC.36(63), MSC.96(72), A.694(17) and A.824(19), required for the vessels of 50,000 GT and greater.

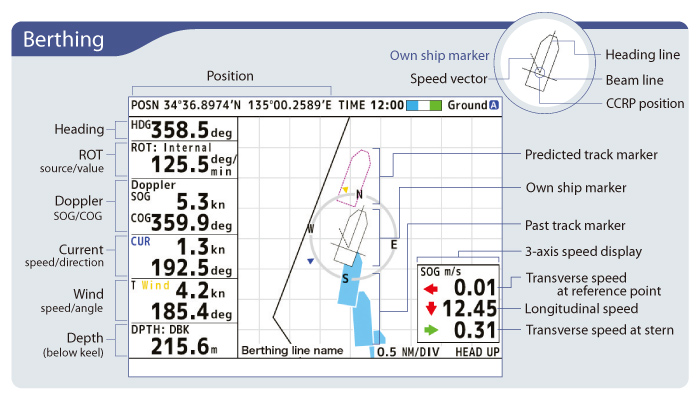

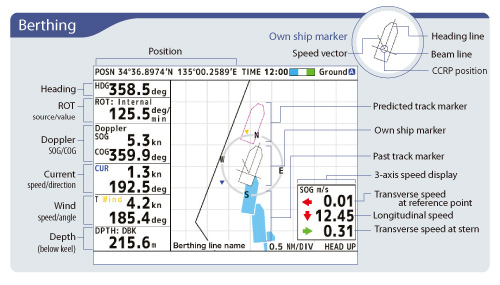

• Delivers high precision measurement required for berthing and docking maneuvers.
• 3-beam transmission reduces the effects of vessel's pitch and roll in order to output precision measurements.
• Ground-tracking speed measurement range of up to 200 m.
• Workload for installation has been greatly reduced thanks to its compact transducer unit.

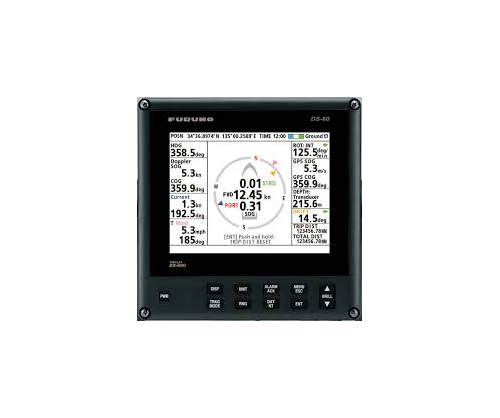

• 8.4-inch color LCD display gives high-legibility, real-time information in both graphics and alphanumerics.
• Remote controller and dimmer controller available. (optional supply)
• Waterproof box for the display for wing installation. (optional supply)
• Additional remote display can be selected from color LCD (DS-600/RD-50) and red LED display. (RD-20)
• Water-tight connector available for the transducer. (selectable upon purchase order)

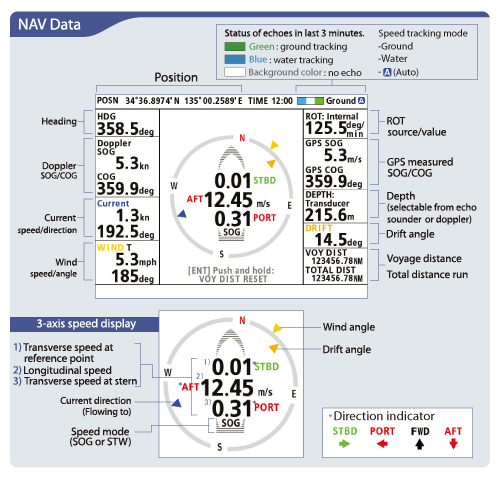

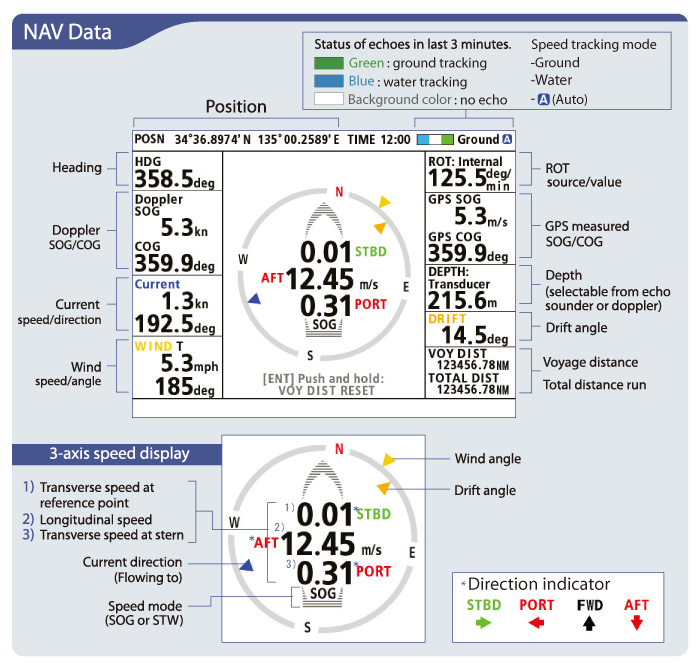

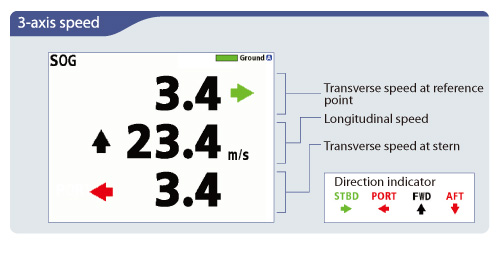

Display Modes
