Voyage Data Recorder VR-7000

Back to: VDR

In Stock

| Add Your Review

PDF Print Email

Ask a question about this product

Full Description
Overview

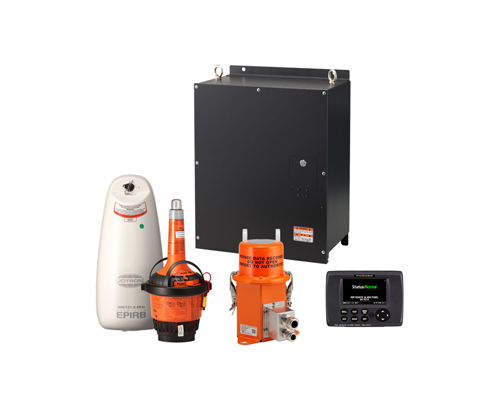

VDR Model:VR-7000 | Records all crucial data to identify the cause of maritime casualty as well as contribute to the future prevention of the catastrophe of any kind.

Features

▶ Complies with the new IMO performance standards for VDR

Data storing for 48 hours both in fixed and float-free recording medium
Data storing for 30 days/720 hours in SSD in the Data Collecting Unit
No.1, 2 Radar and main ECDIS display images can be stored

* Up to 4 Radar and up to 3 ECDIS display images can be stored in rotation.
Also, the images of one other selected display can be stored with the optional SSD.
Radar and ECDIS images can be recorded at 15-second intervals.

▶ Easy to integrate with FURUNO INS Network

FURUNO Radar FAR-3000/FCR-2xx9 series and ECDIS FMD-3100/3200/3300 can be interfaced through Ethernet

* Software update for FAR-3000/FCR-2xx9 series and FMD-3200/3300 is necessary.
* Radar and ECDIS that utilizes LAN interface based on IEC 61162-450 can be connected through Ethernet.

▶ Video LAN converter can convert the Radar signal (DVI or RGB) into Ethernet

* Necessary when FURUNO Radar FAR-2xx7/2xx5, ECDIS FEA-2107/2807 or the products of third-party manufacturers are connected to VR-7000.
* Data conversion from RGB to Ethernet will be made available after the product launch.

▶ Optional sensor adapter gathers all the serial/analog/digital sensor data and collectively feeds it to DCU

Multiple sensor adapters can be interfaced depending upon the number of sensors to be interfaced.

▶ “Live Player V5” for monitoring and playback of the collected data in the DCU on the PC

▶ Extracted the data can be retrieved onto the USB flash memory

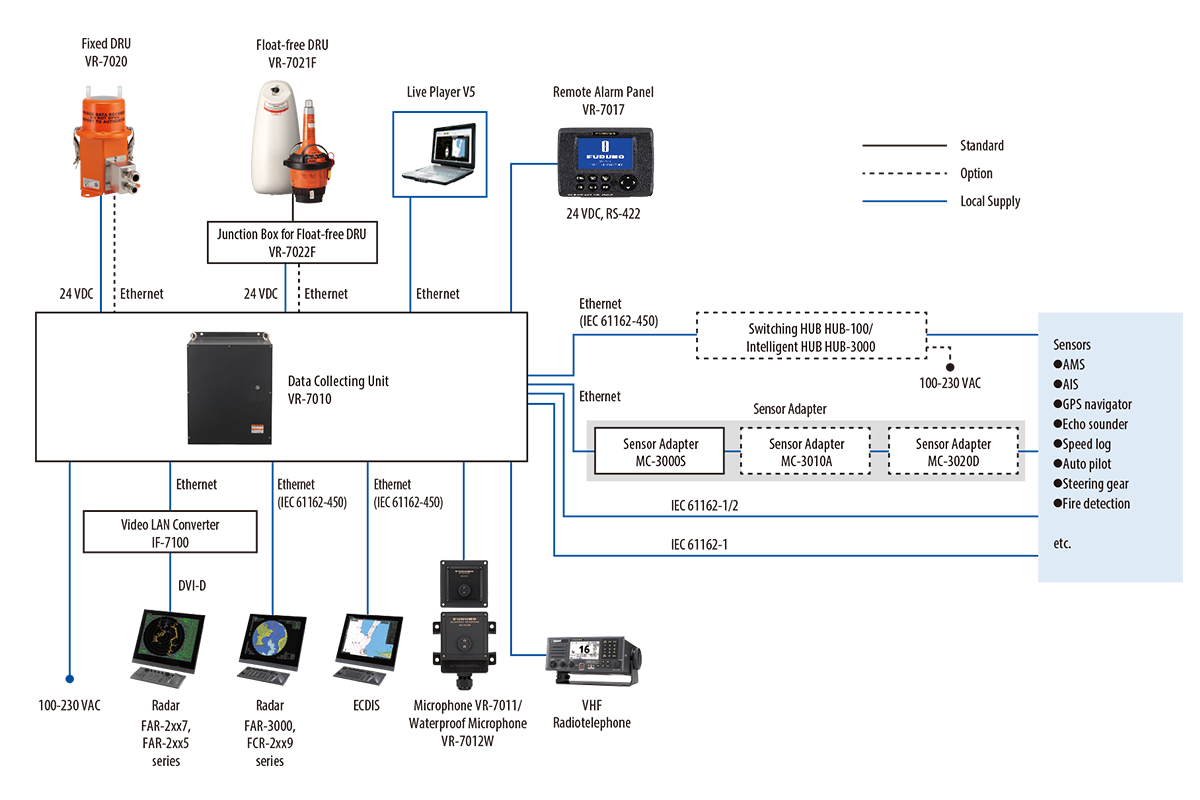

Configuration

Easy to input the sensor data and review stored data

The onboard sensors can be integrated and interfaced to the VR-7000 thanks to Video LAN converter and sensor adapters.
Also, the collected data can be replayed with the PC software or extracted onto a USB flash memories for later analysis.

PC Software

This software extracts and displays the data accumulated from the VR-7000, in real time, on the networked PC screen. Also, the data can be replayed for a more thorough data analysis at a later date.

PC Software screenshot1 PC Software screenshot2

Remote Alarm Panel

At-a-glance recognition of VDR status with minimal operation.

Normal Status
System health checking
(serial/analog/digital signals)
Alert List

The new IMO performance standards for VDR

Revised performance standards of VDR MSC.333 (90)

To be applied to VDR installed on or after 1 July 2014.

Final recording medium and recording period

Current New

fixed recording medium 12 hours 48 hours

float-free recording medium NA 48 hours

long-term recording medium NA 30 days/720 hours
At least 2 ch for bridge audio, at least 1 ch for outside on bridge wings
Record Bridge audio and VHF com. relating to ship’s operation on a separate channel from the bridge audio above
Record No.1 and No.2 Radar (Current: No.1 Radar only)
Record 1 main ECDIS (Current: no requirement)
All AIS data needs to be recorded (Current S-VDR records it instead of Radar image)
Record Bridge Alert Management System, if installed.
Record thrusters, if fitted.
Record electronic inclinometer, if fitted.
Record information from electronic logbook, if fitted, etc.
